TYPICAL APPLICATIONS
Comprehensive performance evaluation of electronic weapon equipment

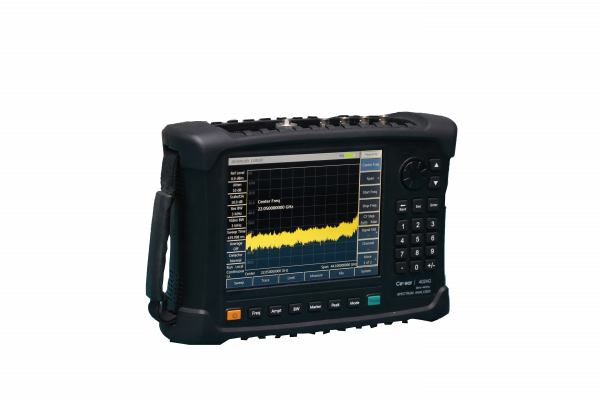

4024 series he advantages of a wide frequency range, high performance specifications, a high sweep speed, multiple test functions, and easy operation. They are handheld, compact and lightweight, which can be powered up by a built-in battery. The series can be used for the field installation & calibration, repair & maintenance of electronic weapon equipment in fields of radar, communication, electronic countermeasures & reconnaissance, and precision guidance etc.
Field test and diagnosis of transmitter and receiver
4024 series he rich measurement function modes like spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc., as well as various intelligent measurement functions such as channel power, occupied bandwidth, adjacent-channel power ratio, carrier-to-noise ratio, field strength measurement, emission mask etc.. They can provide comprehensive spectrum analysis and diagnosis service for the field test of transmitter and receiver.
Broadband spectrum monitoring, interference recognition
Connected with external directive antenna, 4024 series can be used for electromagnetic environment detection, radio interference analysis, electromagnetic environment background assessment, spectrum monitoring and illegal channel interference signal recognition.
| |
| 4024D: 9KHz～20GHz 4024E: 9KHz～26.5GHz 4024F: 9KHz～32GHz 4024G: 9KHz～44GHz Tuning Resolution:1Hz |
| Frequency: 10MHz Aging: ±0.5ppm/Year Initial Frequency Accuracy: ±0.3ppm Temperature Stability:±0.1ppm(-10～50℃, comparative to 25℃) |
| Range: 10μs～600s (Zero Span) Accuracy: ±2.00% (Zero Span) |
Frequency Readout Accuracy | Frequency Readout Accuracy = ±(Frequency Readout× frequency Reference Error +2%× Span +10%× Resolution Bandwidth) |
| Range: 100Hz～Upper Frequency Limit of Corresponding Model or 0Hz Accuracy: ±2.0% |
| 1Hz～10MHz (1-3 Times of Step) |
| 1Hz～10MHz (1-3 Times of Step) |
SSB Phase Noise (1GHz Carrier) | ≤-102dBc/Hz@ Frequency Offset 10KHz ≤-106dBc/Hz@ Frequency Offset 100KHz ≤-111dBc/Hz@ Frequency Offset 1MHz ≤-123dBc/Hz@ Frequency Offset 10MHz |
Displayed erage Noise Level | Pre-amp Off: ≤-138dBm(10MHz～20GHz) ≤-135dBm(20GHz～32GHz) ≤-127dBm(32GHz～40GHz) Pre-amp On: ≤-157dBm(10MHz～20GHz) ≤-154dBm(20GHz～32GHz) ≤-148dBm(32GHz～40GHz) |
| Pre-amp Off: ≤-90dBm (10MHz～13GHz) ≤-85dBm (13GHz～20GHz) ≤-80dBm (20GHz～44GHz) Pre-amp On: ≤-100dBm (10MHz～32GHz) ≤-95dBm (32GHz～44GHz) (Exceptional Frequency: 3.2GHz) |
Second Harmonic Distortion | <-60dBc (Attenuation 0dB, -30dBm Input Signal) |
Absolute Amplitude Accuracy (20℃~30℃, 30 minutes of preheating) | ±1.8dB (10MHz～13GHz) ±2.3dB (13GHz～40GHz) |
| Attenuation Range: 0dB～50dB, 10dB Stepping |
| +30dBm Peak Typical(≥10dB attenuation) +23dBm Peak Typical(<10dB attenuation) +13dBm Peak Typical(Pre-amp On) |
| Range: -120dBm～+30dBm Conversion Uncertainty: ±1.20dB |
| |
| 314mm (W)×218mm (H)×91mm (D) (excluding handle, stand) 338mm(W)×218mm (H)×100mm (D) (excluding handle, stand) |
| About 5kg (excluding battery) |
| |
| |
Electromagnetic Compatibility | Conforms to GJB3947A-2009 3.9.1 Requirements |
| ≤30W (no charging to the battery) |
| 4024D/E: Type N Connector (Female) 4024F/G: 2.4mm Connector (Male) |
| 10MHz Reference Input/output: BNC Female Connector External Triggering Input: BNC Female Connector IF Output: BNC Female Connector GPS Antenna Input: BNC Female Connector |
